Why can't I use a standard 50/60 Hz transformer on a PWM drive output?

Standard low-frequency transformers are not designed to handle high switching frequencies, elevated harmonic content, or steep dv/dt waveforms. Using them in PWM systems can lead to overheating, insulation breakdown, and premature failure.

When is a step-down transformer required?

A step-down transformer is required when the drive output voltage exceeds the motor's rated voltage. It protects the motor from overvoltage stress and helps maintain proper operating conditions.

When is a step-up transformer necessary?

A step-up transformer is used when the available drive or supply voltage is lower than the motor's rated voltage and full performance is required.

Do high-frequency transformers provide electrical isolation?

They can. While many applications use autotransformer configurations for efficiency, full isolation designs are available when required by safety, grounding, or system architecture constraints.

Will adding a transformer affect system current rating?

Yes. Transformer selection impacts current capacity and must be evaluated alongside drive ratings to ensure proper system sizing.

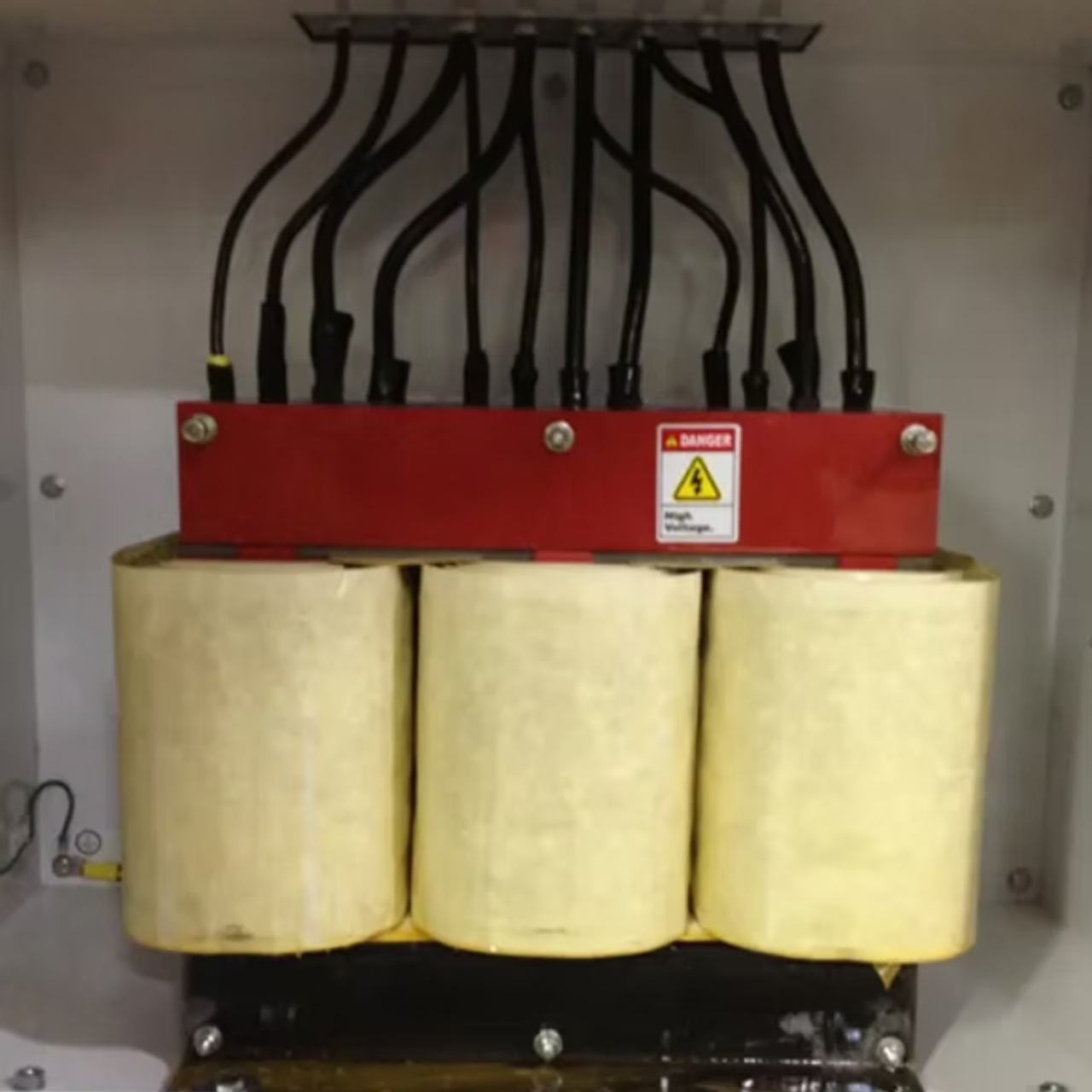

High Frequency Transformers

In high-frequency PWM drive systems, voltage matching and insulation management are critical—especially when drive output voltage does not directly align with motor rated voltage. Spindel™ engineers high-frequency transformers specifically for inverter-based applications where waveform integrity, current ripple tolerance, and compact form factor are essential.

Voltage Matching and Isolation for High-Frequency Drive Systems

Drive output high-frequency transformers match drive output voltage to motor rated voltage in PWM drives. They handle high current ripple and voltage spikes and are typically designed as auto transformers unless isolation is needed. High-frequency transformers are much smaller than low-frequency equivalents, sometimes allowing the use of smaller drives.

Step-Down Transformers: Without a step-down transformer, a 220V motor connected to a 400V PWM drive faces excessive voltage pulses and current ripple. A step-down transformer normalizes the motor's exposure to 220V, extending motor life and acting as an output filter. It can also increase the drive/transformer combination's current rating.

Step-Up Transformers: When a drive is connected to a 220V line and the motor is rated at 400V, a step-up transformer is needed to reach the full motor voltage, permitting full motor speed and power. However, it may reduce the current rating of the drive/transformer combination, possibly requiring a larger drive.

Scott-T Transformers: These transformers convert 3-phase drive output to 2-phase voltage/current for 2-phase motors, often used in high-frequency applications. The primary-to-secondary voltage ratio can be tailored to match drive and motor voltages.

Get in touch

Frequently asked questions

High-frequency transformer applications in PWM drive systems require careful electrical and thermal evaluation. Below are common technical questions we receive when engineers are determining whether a transformer is required.

Spindel™ is trusted by great brands

Manufacturers across North America rely on SPINDEL™ for technically complex drive and power conversion applications that require precision engineering and proven field performance. Our transformer solutions are implemented in systems where electrical accuracy and reliability directly impact uptime and productivity.
